The vials coming from sterilizing tunnel will be sent to conveying belt through the turntable, sent to the transition star-wheel through conveying belt and sent to filling star-wheel through transition star-wheel for positioning filling, filling star-wheel locate vials at filling nozzle, filling auger begins to work, fill powder directly into vials. After filling, vials are sent to stoppering station. During stoppering station, the vials are sent to the rotary stoppering plate, the stoppers are sucked by the vacuum, and move with the stoppering plates, the vials moves up and then they are plugged with stoppers one by one. After stoppering, the vials will be sent out to the collecting tray through the star-wheel. Up to now, then whole filling and stoppering process are completed.
Basic Parameter
Filling head 2
Stoppering head 12
Key Words:
Pharmaceutical Machinery, Pharmaceutical Engineering, Pharmaceutical Equipment, Packaging Machinery, GMP Machinery, Pharmaceutical Industry, Pharmaceutical Technology
cGMP Service, cGMP Solutions, cGMP Validation
Introduction :

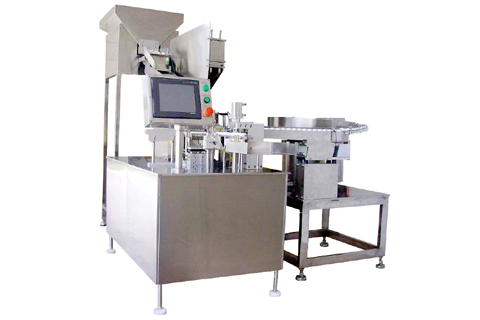

Tablet bottling machine for bobbin tubes is applicable to the packing of bigger and thinner tablets which are orderly fed into bobbin tubes in a single row in an overlapping way. The device utterly adopts a PLC for centralized control. It is verified in fiber and photoelectric detections and other kinds of detections to have steady performance and reliably automatic operation. It can automatically give alarms and shut down in case of no tablets, tubes or covers. Its part in contact with the tablets is made of superior 304 or 316L stainless steel. Thus, it is the best device for pharmaceutical factories, health product factories and food factories to pack effervescent tablets and other products alike.
General Technical parameters :
Voltage: 220V50/60Hz;
Power: 0.6KW;
Feeding capacity: 10-30 tablets/tube;
Tablet diameter: 16mm-30mm
Tablet thickness: 3mm-8mm;
Power: 0.6KW
Compressed air: 0.5~0.7MP, consumption: 0.28 m3/minutes
Weight: 420kg
Dimension: 2100(L)*1600(W)*1600(H)
